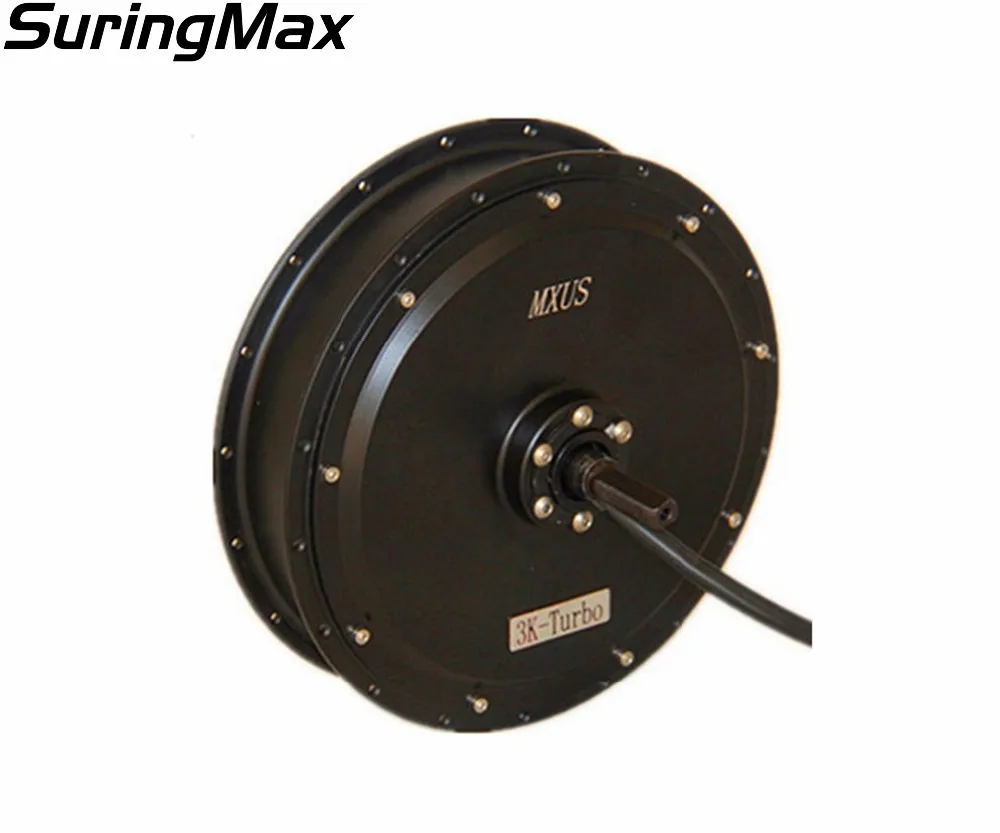

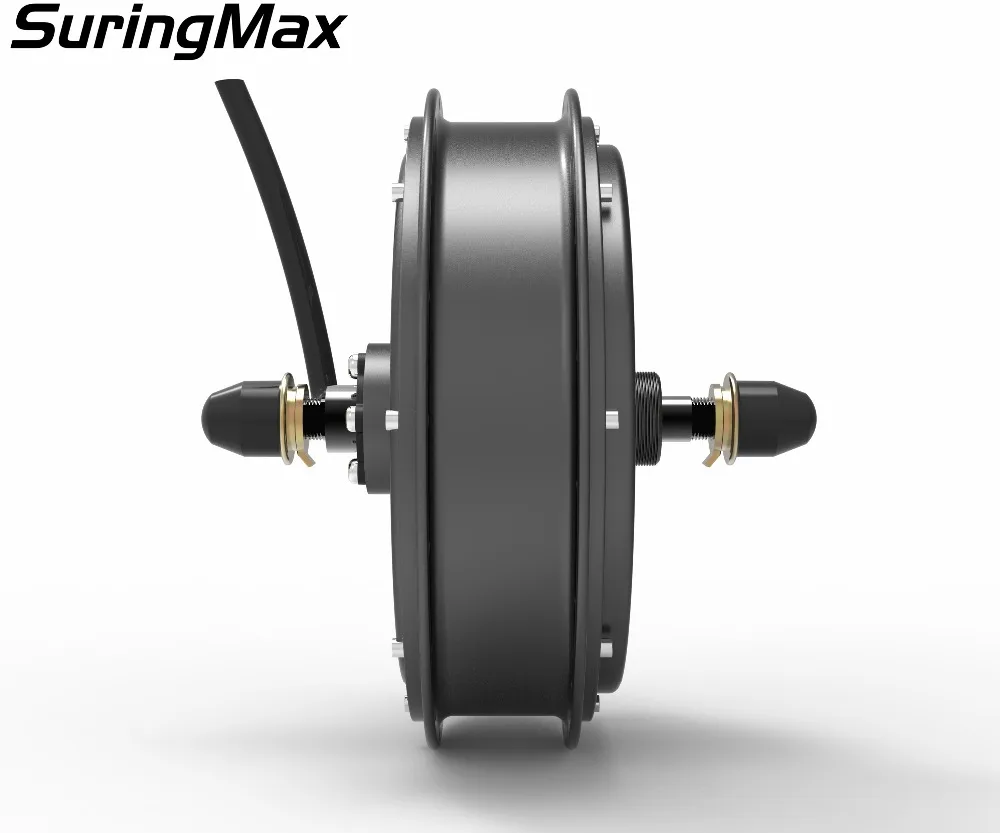

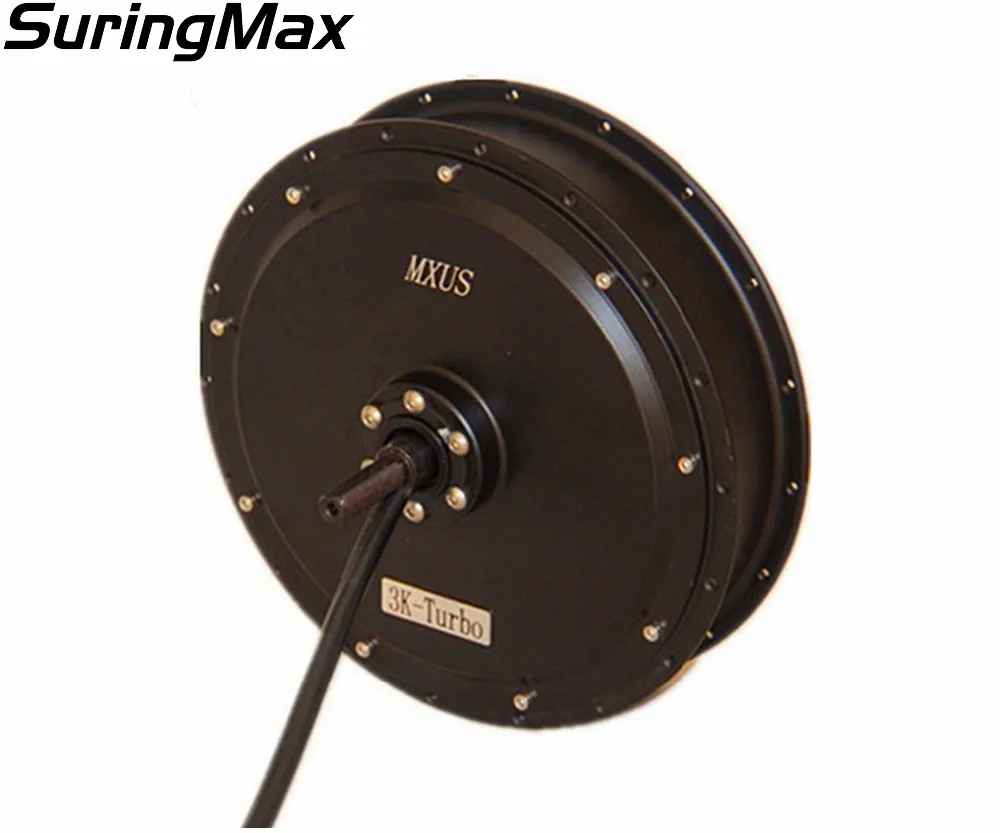

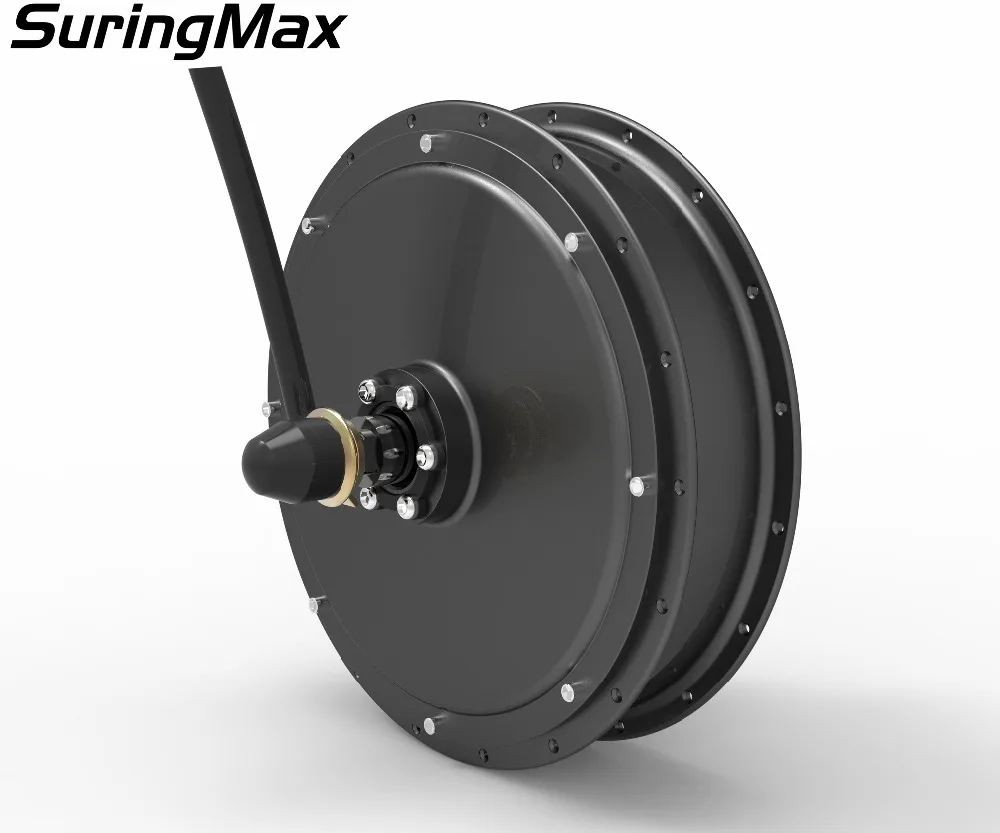

Standard 135mm dropout M16 Screw MXUS V3 3000W brushless no-gear hub motor for rear electric bike electric bicycle

Aokwe 4 inch 2mp 1080p AHD / CVI / TVI/ Analogue all in one ptz camera 10x zoom high speed dome camera rs485 ptz camera Funxwe FW26 Solar Power Battery Powered 1080P WiFi IP Camera Wireless P2P Starlight CCTV Outdoor Security Night Vision IR 80M 512Hz Transmitter Built-in 23mm Camera Head For Pipe Drain Sewer Inspection Pipe Snake Camera Replacement Pipe Locator 8 Inch ONVIF 2MP 2.8-12mm Lens Vehicles License Plate Recognition LPR IP Camera With 4Pcs IR White Light LEDs,Waterproof IP66 20M Cable Ice Finder Underwater Fishing Camera 6 IR Leds Cctv camera Video DVR 4.3 Inch monitor Dual Lens Support Memory Card NEW 720P HD Handheld 3.9mm 1M 3M Flex Endoscope Camera 4.3" LCD Monitor LED Flashlight Snake Tube Pipe Inspection Borescope ONVIF AHD 2MP 1080P PTZ Speed Dome Camera 20xZoom Pan Tilt Rotation IR Night Vision HD CCTV Surveillance Camera rs485 bnc Wholesale original dahua DH-SD29204T-GN-W replace DH-SD29204S-GN-W Wifi IP 2MP Mic mini PTZ Dome POE Camera SD29204T-GN-W SOWZE New Style WiFi Car Remote Robot Camera Car Support Smart Phone Remote Control Wire Charging Automatic Recharge IP Camera in stock DS-2CD2742FWD-IZS Original Hik 4MP Dome Camera Vari-focal lens IK10 Network IPC H.264+ IR30m 1-ch audio I/O 1-ch alarm 5 inch 2.0MP AHD Medium Speed Dome Camera outdoor & indoor Pan/Tilt Zoom PTZ 18X optical Zoom 1080P AHD ptz camera support RS485 New Model SD22204UE-GN 2MP 4x Starlight PTZ Network Camera , free DHL shipping Security IP Camera CCTV 4k 8MP IR Mini-Dome Network Camera IP67 IK10 with POE Without Logo IPC-HDBW4830E-AS free shipping 3.5 Inch 8.5MM 5X Zoom 180 Degree Rotation AV Handheld Endoscope VStarcam C34S-X4 Wireless PTZ Dome IP Camera Outdoor 1080P HD 4X Zoom CCTV Security Video Network Surveillance Wifi Wistino Wifi Automatic Pet Feeder Food Dispenser Feed for Dog Cat Recording With HD 720P WiFi Camera Wireless Phone Control ZILNK Full HD 1080P 2Megapixel WiFi Outdoor 5x Optical Zoom PTZ Wireless IP Camera Motion Detection Onvif Suppot TF Card Black Original dahua English SD29204T-GN-W replace DH-SD29204S-GN-W Wifi IP 2MP Mic PTZ Dome Camera wireless firmware upgrade SD12200T-GN 2MP Starlight PT Network Camera SD12200T-GN, free DHL shipping h.264/265 5MP 4MP outdoor POE PTZ IP Camera 30X ZOOM Waterproof PTZ Speed Dome Camera IR 60M P2P CCTV Camera IP Onvif network Stardot Wifi Fish Finder Camera 7 Inch Color Monitor 1000tvl Underwater Fishing Video Camera Kit HD Wireless For IOS Android APP YI Dome Camera 720P Pan/Tilt/Zoom Wireless IP Security Surveillance System HD Night Vision (US / EU Version) Cloud Available 2pc 3.6-11mm Motorized Zoom HEVC POE H.265 IP Camera Audio Alarm Outdoor Smart Security Camera Sony IMX178 Hi3516A SIP-E51-178AMF YI Outdoor Security Camera Cloud Cam Wireless IP 1080p resolution Waterproof Night Vision Security Surveillance System White 2pc Mini 2MP AHD CVI TVI all in 1 PTZ Camera outdoor & indoor Pan Tilt Zoom PTZ 22X optical Zoom 1080P AHD ptz camera support RS485 Cheap 2MP 1080P outdoor IP66 IP Mini PTZ Camera 10X Optical Zoom 60M IR Dome CCTV Security Camera ANRAN IP Cameras H.265 HD 5MP Outdoor POE Security Camera Waterproof Alarm System CCTV Camera Night Vision P2P Sueveillance Cam New 5MP 30X MINI PTZ Dome Camera 1080P 30X Middel AHD Camera 50M IR Outdoor CCTV Camera Support RS485 UTC function Original English Dahua logo IPC-HDW5231R-ZE 2MP WDR 4X zoom IR Eyeball Network Camera withaudio DH-IPC-HDW5231R-ZE Free shipping Original Dahua IPC-HFW1831E 8MP WDR IR Mini Bullet Network Camera with Max. IR LEDs Length 50m IP Camera IPC-HFW1831E HQCAM 1080P ONVIF 2.4 Mini Small webcams Security Indoor mini ip camera Support RS485,alarm in,audio output input,CVBS BNC High quality home guard security ip camera ESCAM QN02 Robot onvif p2p ip camrea indoor cctv camera Dahua IP Camera 1.3MP IPC-HFW1120S POE IR30m H.264+ waterproof IP67 English firmware can be upgraded bullet camera CCTV Surveillance IP Camera Outdoor HD 960P 1080P 4G Wireless SIM Card Wifi CCTV Camera PTZ Infrared Bullet Camera 3.5 inch Dual Camera Diameter 5.5MM Image 180 Degree Rotation Handheld Endoscope Camera 5.5MM Dual Camera Take Photo&Video AV Handheld Endoscope Camera 3.5Inch 5.5MM Dual Camera Image Rotation 180 Degree AV Handheld Endoscope Camera 3.5 inch 5.5MM Dual Camera Image 180 Degree Rotation Handheld Endoscope Camera

Motor Type Brushless Non-gear Hub Motor

Design Brushless

Brand Name suringmax

Wattage > 400w

Voltage 48V/60V/72V/84V/96V

Rated voltage 48V-96V

Rated power 1500W-3000W

Wheel size 20inch-28inch

Open size 135mm(For single freewheel)

Freewheel Single freewheel

Cable location Shaft center left

Spoke specifition 10G 36holes

Brake type V brake/ Disc brake

Net weight 9.3Kg

Phase wires 4 mm2

Note: The motor is the version 3 of MXUS 3000W hub motor.the advantage of it is : 1)It 'saluminum stator,is0.35mm 300 silicon steel sheets.the engine has "more power,more torque and higher efficiency"! 2)the phase wire is 4.0mm square,it can afford bigger current. 3)It has 2 pieces of hall wire,so you don't need to be worried about the hall problem. ***** If you need it,please tell me these details: 1)What's the size of wheel? you can choose 20inch----28inch 2)What's the voltage of your battery? you can choose 48V---96V 3)How fast do you need ? you can choose 30km/h--120km/h(with load) 4)Other requirement..... If you buy directly without any connection,we will send you only the motor with the standard speed for 26 inch wheel. Product details: ***Do you suspect the truth of the motor's torque and speed,you can check this: https://www.youtube.com/watch?v=tlCOdz6Wb-4 https://www.youtube.com/watch?v=pqA1yn2qxz8 You can see the high performance of the motor. Quick details: Actuation position Rear Colour BlacK Rated voltage 48V---96V Rated power 1500W---3000W Max speed 530RPM at 48V Rated dfficiey >80% Weight 9.3Kg Open size 135mm for single freewheel Freewheel Single freewheel Cable location Axle Shaft center left M16 Spoke specification 10G Spoke hole 36 holes Phase wire 4mm2 Hlall sets 2 sets Hall sensor Opetional Connector Opetional Brake type V/Disc Noise <50db 1120rpm="" 1500w="" 1900w="" 2200w="" 2600w="" 3000w="" 350="" 3="" 430rpm="" 435rpm="" 48v="" 4="" 525rpm="" 535rpm="" 560rpm="" 5="" 60v="" 610rpm="" 645rpm="" 700rpm="" 72v="" 750rpm="" 840rpm="" 84v="" 860rpm="" 96v="" 980rpm="" alt="Best Standard 135mm dropout M16 Screw MXUS V3 3000W brushless no-gear hub motor for rear electric bike electric bicycle 0" and="" be="" can="" class="img-fluid" customized="" details="" drawing="" grade="" img="" inside="" ip54="" load="" magnets="" max="" mm="" motor="" of="" ofthe="" power="" powerful="" proof="" rated="" rpm="" speed="" src="https://ae01.alicdn.com/kf/HTB1fnFtOpXXXXb4aFXXq6xXFXXX6/221256497/HTB1fnFtOpXXXXb4aFXXq6xXFXXX6.jpg?size=14559&height=90&width=800&hash=55b90cd44bf6abad3f7437ef8024b0ef" stator="" the="" title="Best Standard 135mm dropout M16 Screw MXUS V3 3000W brushless no-gear hub motor for rear electric bike electric bicycle 0" turns="" voltage="" water="">
